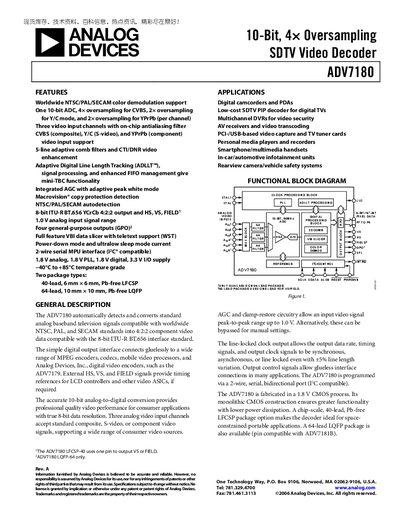

The ADV7180 is a 10-bit 4× oversampling SDTV video decoder that supports worldwide NTSC/PAL/SECAM color demodulation.
The ADV7180 video decoder converts analog baseband television signals (composite, S‑video, component) from NTSC, PAL and SECAM standards into a digital 8‑bit ITU‑R BT.656 output. It features a 10‑bit ADC with 4× oversampling for CVBS and 2× for Y/C and YPrPb modes, and provides timing signals (HS, VS, FIELD) for downstream video ASICs.
Key features include adaptive digital line length tracking, macrovision copy‑protection detection, a 5‑line comb filter, VBI data slicer with teletext support, four general‑purpose outputs, and a 2‑wire I²C‑compatible serial interface. The device is offered in a 40‑lead LFCSP and a 64‑lead LQFP package for space‑constrained or higher‑pin‑count applications.
| Input High Voltage | 2 V |
|---|---|
| Power‑Down Current | 6 µA |
It automatically detects and converts PAL, NTSC and SECAM standards in composite, S‑video, and component formats.
The device draws 6 µA in power‑down mode.
Programming is done via a 2‑wire serial I²C‑compatible interface.
