This manual provides safety instructions, system requirements, and information about the main features and functions of the camera. It also includes a guide on how to get started with the camera, take photos, record videos and audio, and use various settings and menus.

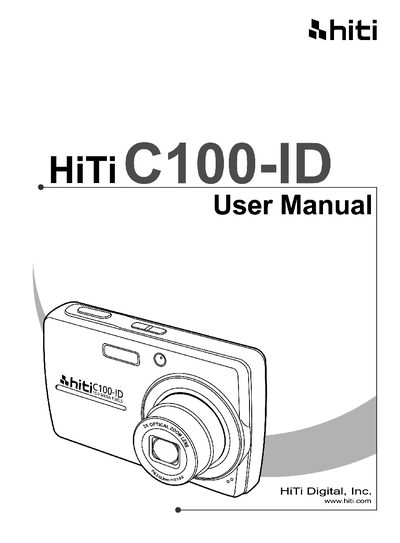

This manual guides you through the basic setup of the HiTi C100-ID camera, including package contents, battery installation, SD/SDHC card insertion, and initial power‑on procedures. It also explains the menu system, shooting modes, and how to use the LCD monitor for preview and playback.
Later sections cover detailed settings such as zoom control, white balance, exposure, and flash options, as well as connectivity options like TV output, USB transfer, and PictBridge. The final chapter lists the technical specifications, dimensions, and safety information.
| Sensor | 10 Mega‑pixel CCD, 1/2.3" size |
|---|---|
| Lens focal length | 6.3 – 18.9 mm (8× optical zoom) |
| Digital zoom | 5× |
| LCD monitor | 3.0‑inch color LTPS LCD |
| Focus range (normal) | 0.4 m – infinity |
| Focus range (macro) | 0.1 m – 0.6 m (wide only) |
| Aperture | F = 3.1‑5.6 |
| Shutter speed (auto) | 1 – 1/2000 sec |
| Shutter speed (manual) | 15 – 1/2000 sec |
| Video format | AVI (MJPEG) |
| Audio format | WAV |
| Image resolutions | Up to 3648 × 2736 (10 MP) |
| Internal memory | 32 MB |
| Maximum SD card size | 4 GB (SD), 8 GB (SDHC) |
| Battery type | Li‑ion |
| Dimensions (max) | 97.6 × 57.5 × 18.9 mm |
| Weight | 130 g |
| Operating temperature | 0 °C – 40 °C |
| Operating humidity | 0 % – 90 % |
The camera uses a Li‑ion battery.
It supports SD cards up to 4 GB and SDHC cards up to 8 GB.
The camera can operate from 0 °C to 40 °C.
It includes 32 MB of internal flash memory.
