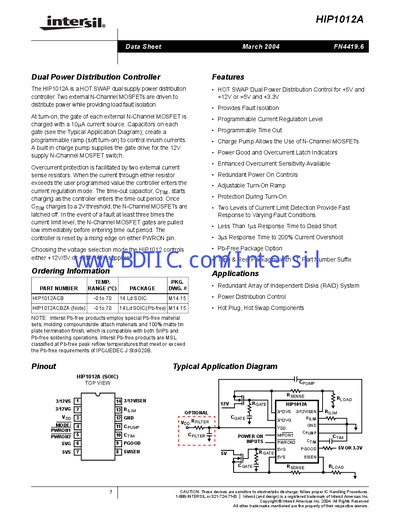

The HIP1012A is a HOT SWAP dual supply power distribution controller. It drives two external N-Channel MOSFETs to distribute power while providing load fault isolation. It features soft turn-on, overcurrent protection, and timeout control.
The HIP1012A provides hot‑swap dual power distribution for +5 V and +12 V or +3.3 V and +5 V supplies. It drives external N‑Channel MOSFETs, offers programmable current‑limit thresholds, time‑out control, and fault‑isolation indicators such as PGOOD and over‑current latch signals.
The device includes a built‑in charge pump for the 12 V gate drive, supports selectable voltage‑selection modes, and can be reset by a rising edge on either PWRON pin. Typical applications include RAID systems, hot‑plug components, and general power‑distribution control.
| Supply Voltage Range (Vpp) | +10.5 V to +13.2 V |
|---|---|
| Temperature Range (Ta) | 0 °C to 70 °C |
| Maximum Junction Temperature | 150 °C |
| Current Limit Threshold Voltage (12 V mode, 10 kΩ) | 100 mV |
| Gate Turn‑On Time (12 V mode) | 12 ms |
| Charge Pump Output Voltage (no load) | 17.4 V |
The Vpp supply operates from +10.5 V to +13.2 V.
The device is reset by a rising edge on either PWRON pin.
A 10 µA current source charges a gate‑capacitor to create a programmable soft‑turn‑on ramp.
VDD pins are rated from –0.3 V to +13.2 V.
