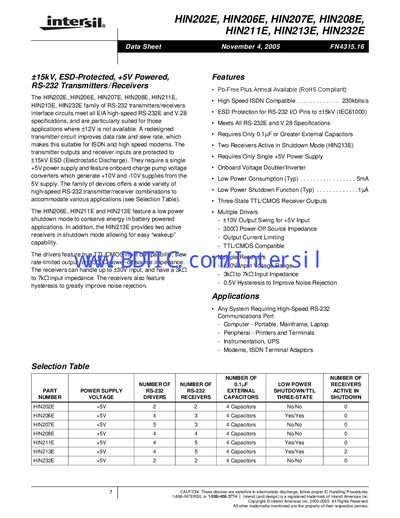

The HIN202E, HIN206E, HIN207E, HIN208E, HIN211E, HIN213E, HIN232E are a family of RS-232 transmitters/receivers interface circuits that meet ElA high-speed RS-232E and V.28 specifications, particularly suited for applications where ±12V is not available. They provide ±15kV ESD protection, require a single +5V power supply, and feature onboard charge pump voltage converters. The family offers a variety of high-speed RS-232 transmitter/receiver combinations for different applications.
The HIN2xxE family comprises RS‑232 transmitters and receivers that operate from a single +5 V supply and include on‑chip charge‑pump voltage doublers to generate ±10 V I/O levels. Devices feature low‑power shutdown mode, ESD protection up to +15 kV, and are RoHS‑compliant.
The datasheet provides absolute maximum ratings, electrical specifications, pin‑out diagrams for multiple package types (PDIP, SOIC, SSOP, TSSOP), ordering information and mechanical dimensions for SSOP and SOIC packages.
| Input Voltage Range (RS‑232) | -30 V to +30 V |
|---|---|
| Operating Temperature Range | -40 °C to 85 °C |
The RS‑232 input pins accept voltages from –30 V to +30 V.
Yes, the devices are Pb‑free and RoHS‑compliant.
