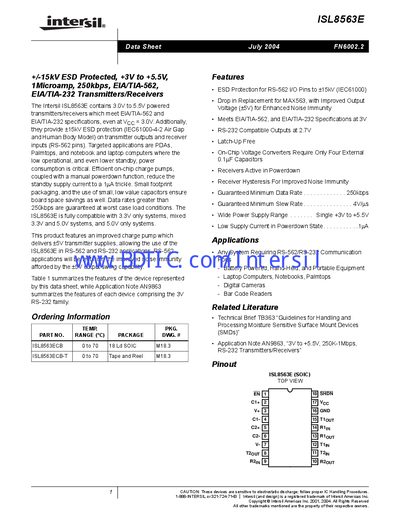

Intersil ISL8563E is an ESD protected transmitter/receiver with a working voltage range of +3V to +5.5V. It has low power consumption, efficient charge pumps, and a manual powerdown function.
The ISL8563E is a dual‑channel RS‑562/RS‑232 transceiver that operates from a single 3 V to 5.5 V supply. It provides +15 kV ESD protection on all I/O pins, guarantees a minimum data rate of 250 kbps, and consumes very little power, making it suitable for battery‑powered devices such as PDAs, palmtops, and notebook computers.
Key features include on‑chip dual charge pumps that generate the required ±5.5 V transmitter supplies, four external 0.1 µF capacitors, a manual power‑down pin (SHDN) for ultra‑low standby current, and an EN pin to disable receiver outputs for further power savings.
| Operating Supply Voltage | 3.0 V – 5.5 V |
|---|---|
| Minimum Data Rate | 250 kbps |
| ESD Protection (RS‑562 pins) | +15 kV (IEC61000) |
| Powerdown Supply Current | 1 A |
| Typical Operating Supply Current | 0.3 mA |
| Input Logic Threshold Low | 0.8 V |
| Package | 18‑lead SOIC |
| Number of Transmitters / Receivers | 2 each |
The device guarantees a minimum data rate of 250 kbps.
The RS‑562 pins are protected up to +15 kV (IEC61000).
It operates from 3.0 V up to 5.5 V.
