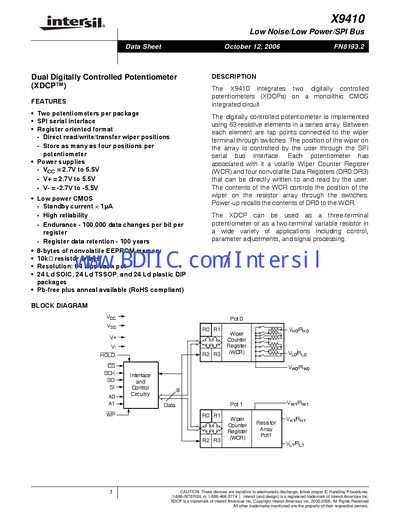

X9410 is a low noise/low power/SPI bus dual digitally controlled potentiometer. It features two potentiometers per package, SPI serial interface, register oriented format for direct read/write/transfer of wiper positions, and the ability to store up to four positions per potentiometer. It supports power supplies from 2.7V to 5.5V and has low power CMOS technology with standby current less than 1µA. It offers high reliability with endurance of 100,000 data changes per bit per register and register data retention for 100 years. It also includes 8 bytes of nonvolatile EEPROM memory, 10kΩ resistor arrays, 64 taps of resolution for each pot, and multiple package options.
The X9410 integrates two digitally controlled potentiometers with a SPI serial interface. It provides volatile wiper counter registers and four non‑volatile data registers per pot, supporting low‑power operation and long‑term data retention.
The document includes ordering information, pin descriptions, detailed instruction sets, and mechanical package dimensions for SOIC, PDIP, and TSSOP variants. It also outlines electrical specifications such as supply voltages, standby current, endurance, and data retention.
| Number of potentiometers | 2 per package |
|---|---|
| Interface | SPI serial interface |
| Standby current | < 1 pA |
| Endurance | 100,000 data changes per bit per potentiometer |
| Data retention | 100 years |
| Analog supply voltage V+ | 2.7 V to 5.5 V |
| Analog supply voltage V‑ | -2.7 V to -5.5 V |
| Package (SOIC) | 24‑lead SOIC (300 mil) |
| Package (TSSOP) | 24‑lead TSSOP (4.4 mm) |
The standby current is less than 1 pA.
The X9410 contains two potentiometers per package.
Data is retained for 100 years.
It can handle 100,000 data changes per bit per potentiometer.
