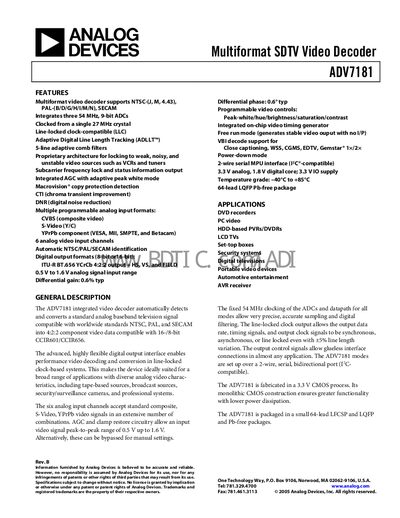

This document introduces the features of Analog Devices' ADV7181 Rev. B multi-format SDTV video decoder.
The ADV7181 is a single‑chip multiformat video decoder that automatically detects and converts NTSC, PAL, and SECAM analog video signals (composite, S‑Video, and component) into a digital ITU‑R BT.656 4:2:2 output. It integrates three 9‑bit ADCs, a 6‑channel input MUX, and adaptive digital line‑length tracking to handle weak or noisy sources such as VCRs and tuners.
Designed for a wide range of applications—including DVD recorders, set‑top boxes, security cameras, automotive entertainment, and professional video systems—the device offers programmable video controls, VBI data decoding, Macrovision detection, and a 2‑wire I²C‑compatible serial interface for configuration.
| Temperature range | -40°C to +85°C |
|---|---|
| ADC resolution | 9 bits |
| Analog input voltage range | 0.5 V to 1.6 V |
| Package type | 64‑lead LQFP (Pb‑free) |
| Analog power supply (Avo) | 3.15 V to 3.45 V |
It supports NTSC (J, M, 4.43), PAL (B/D/G/H/I/M/N), and SECAM standards in composite, S‑Video, and component formats.
The device has six analog video input channels.
The recommended analog input voltage range is 0.5 V to 1.6 V.
A 2‑wire I²C‑compatible MPU interface is used for programming the ADV7181.
