ADV212 is a JPEG 2000 video codec from Analog Devices that is low power and low cost.

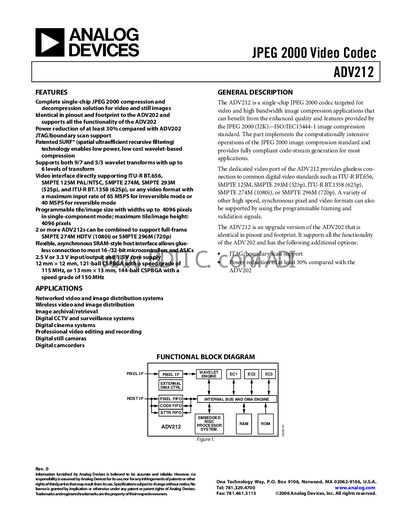

The ADV212 is a single‑chip JPEG 2000 compression and decompression solution targeted at video and high‑bandwidth image applications. It implements the computationally intensive parts of the JPEG 2000 standard and provides a fully compliant code‑stream generation.
The device offers a wide range of video interfaces (ITU‑R BT.656, SMPTE 125M, SMPTE 293M, ITU‑R BT.1358, SMPTE 274M, SMPTE 296M), supports both 9/7 and 5/3 wavelet transforms, and includes a flexible asynchronous SRAM‑style host interface for 16‑/32‑bit microcontrollers or ASICs. Applications include networked video distribution, digital CCTV, digital cinema, professional video editing, and still‑camera systems.
| Core Supply Voltage (VDD) | 1.425 V – 1.575 V |
|---|---|
| Input Voltage Range (Vin) | -0.3 V to +0.3 V |
| Operating Temperature Range | -40 °C to +85 °C |
| Static Current | 15 mA – 30 mA |
| Dynamic Core Current (150 MHz) | 380 mA – 440 mA |
| Maximum Pixel Processing Rate (reversible mode) | 40 MSPS |
| Package Options | 12 mm × 12 mm, 121‑ball GSPBGA (115 MHz) or 13 mm × 13 mm, 144‑ball CSPBGA (150 MHz) |
| Pinout Compatibility | Identical to ADV202 |
It supports ITU‑R BT.656, SMPTE 125M, SMPTE 293M (525p), ITU‑R BT.1358 (625p), SMPTE 274M (1080i) and SMPTE 296M (720p).
The chip can process up to 40 MSPS in reversible mode and higher rates in irreversible mode.
Yes, its pinout and footprint are identical to the ADV202.
