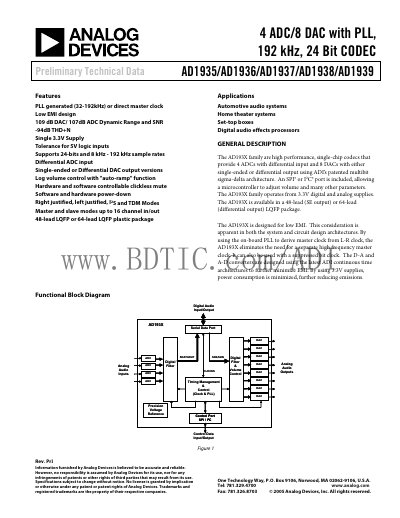

The AD193X family are high performance, single-chip codecs that provide 4 ADCs with differential input and 8 DACs with either single-ended or differential output using ADI’s patented multibit sigma-delta architecture.
The AD1936 is a high‑performance, single‑chip audio codec offering four differential ADCs and eight DACs with 24‑bit resolution. It operates from a single 3.3 V supply and includes a PLL for flexible master‑clock generation, supporting sample rates from 8 kHz to 192 kHz.
The document lists detailed electrical specifications, absolute maximum ratings, temperature ranges, digital filter options, timing parameters, and package dimensions. An ordering guide at the end provides part numbers for various temperature‑grade and package options, as well as evaluation board references.
| Supply Voltage (AVDD, DVDD) | 3.3 V |
|---|---|
| Word Width | 24 Bits |
| ADC Dynamic Range | 107 dB |
| Input Voltage High (HI) | 2.0 V |
| Input Voltage Low (LO) | 0.8 V |
| Operating Temperature Range (Case) | -40 °C to +125 °C |
| Package (AD1936) | 48‑Lead LQFP, SE out, I²C control |
The AD1936 operates from a 3.3 V supply for both analog (AVDD) and digital (DVDD) rails.
The device is rated for case temperatures up to +125 °C, with a minimum of –40 °C.
Digital input high is 2.0 V and low is 0.8 V.
It uses a 48‑lead LQFP package with single‑ended output and I²C control.
