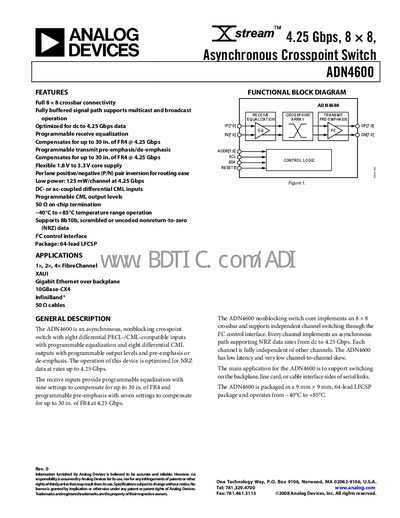

The ADN4600 is an Analog Devices product that is a 4.25 Gbps, 8x8, asynchronous crosspoint switch.
The ADN4600 is an 8 × 8 asynchronous, non‑blocking crosspoint switch with fully buffered signal paths supporting multicast, broadcast, and up to 4.25 Gbps NRZ data rates. It offers programmable receive equalization and transmit pre‑emphasis to compensate for up to 30 in. of FR4, a flexible 1.8 V‑3.3 V core supply, and low power consumption of 125 mW per channel.
The datasheet provides detailed electrical and timing specifications, absolute maximum ratings, pin configuration, package dimensions, and an ordering guide. It also lists typical applications such as Fibre Channel, XAUI, Gigabit Ethernet backplane, 10GBase‑CX4, and InfiniBand.
| Maximum Data Rate per Channel | 4.25 Gbps |
|---|---|
| Operating Temperature Range | -40 °C to +85 °C |
| Input Voltage Swing (Differential) | 0.6 V – 3.3 V |
The ADN4600 supports up to 4.25 Gbps per channel in NRZ format.
It operates from –40 °C to +85 °C.
The device is supplied in a 64‑lead LFCSP (Lead‑frame Chip Scale Package).
