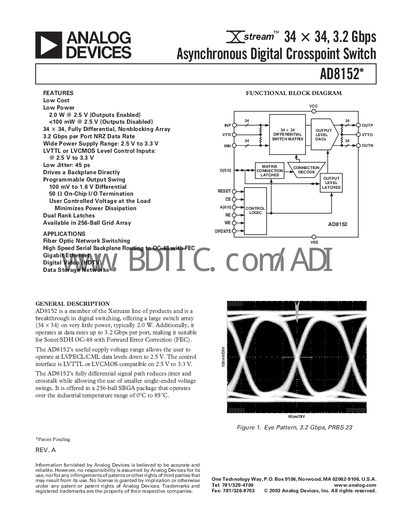

This document describes the features and characteristics of the AD8152* 34×34, 3.2 Gbps asynchronous digital crosspoint switch, including low cost, low power, wide power supply range, low jitter, etc.
The AD8152 from Analog Devices is an asynchronous digital crosspoint switch featuring a 34 × 34 non‑blocking array, 3.2 Gbps per‑port NRZ data rate, and a wide supply range of 2.5 V to 3.3 V. It operates over an industrial temperature range (0 °C‑85 °C) and is offered in a 256‑ball SBGA package.
The device provides low‑jitter (45 ps) differential signaling, programmable output swing (100 mV‑1.6 V), and on‑chip termination. It is suited for fiber‑optic network switching, high‑speed serial backplane applications, and data‑storage systems.
| Maximum Data Rate per Channel (NRZ) | 3.2 Gbps |
|---|---|
| Power Consumption (Outputs Enabled) | 2.0 W @ 2.5 V |
| Supply Voltage Range | 2.5 V to 3.3 V |
| Operating Temperature Range | 0 °C to 85 °C |
| Differential Output Swing | 100 mV to 1.6 V p‑p |
| Package | 256‑Ball SBGA (BP‑256) |
The AD8152 supports up to 3.2 Gbps per channel in NRZ mode.
It operates from 0 °C to 85 °C.
It consumes about 2.0 W at a 2.5 V supply with outputs enabled.
The device is supplied in a 256‑ball SBGA (BP‑256) package.
