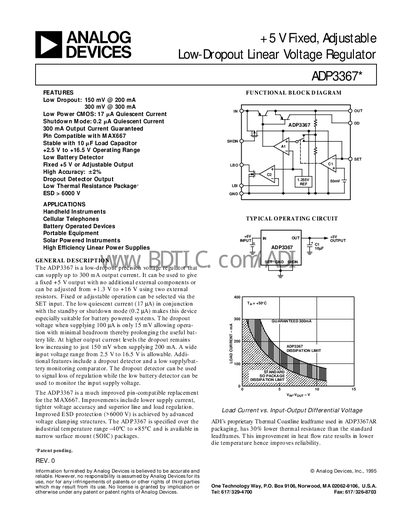

ADP3367 is a fixed, adjustable low-dropout linear voltage regulator launched by Analog Devices. It has the advantages of low dropout, low power consumption, low static current, and is suitable for applications such as handheld instruments, cellular telephones, battery-powered devices, portable equipment, solar-powered instruments, and high-efficiency linear power supplies.
The ADP3367 is a low‑dropout linear voltage regulator that can supply up to 300 mA output current. It offers a fixed +5 V output or an adjustable output from +1.3 V to +16 V using external resistors, and includes a dropout detector and low‑battery monitoring comparator.
The device is supplied in a small‑outline SOIC package, operates over an industrial temperature range (‑40 °C to +85 °C), and features a patented low‑thermal‑resistance leadframe for improved heat dissipation. Detailed specifications, pin functions, and application circuits are provided.
| Input Voltage Range | 2.5 V – 16.5 V |
|---|---|
| Maximum Output Current | 300 mA (guaranteed) |
The regulator can supply up to 300 mA of output current.
