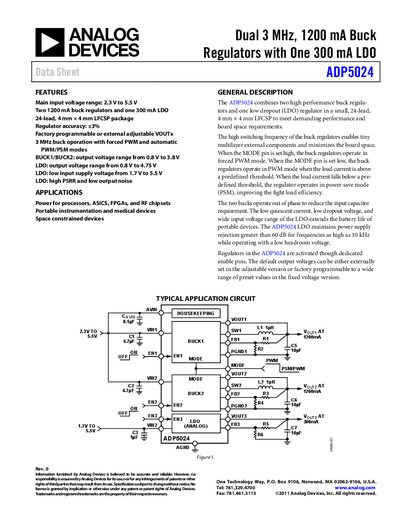

The ADP5024 is a high performance dual buck regulator and single low dropout (LDO) regulator in a small, 24-lead, 4 mm × 4 mm LFCSP package that meets demanding performance requirements.
The ADP5024 combines two high‑performance 3 MHz buck regulators and a low‑dropout regulator in a compact 24‑lead LFCSP package. It offers programmable or fixed output voltages, low quiescent current, and high PSRR, making it suitable for space‑constrained portable devices and processor power supplies.
The document provides detailed electrical specifications, pin‑out descriptions, recommended external components, thermal information, and a bill of materials, along with typical application schematics and an ordering guide.
| Input voltage range (buck) | 2.3 V to 5.5 V |
|---|---|
| Input voltage range (LDO) | 1.7 V to 5.5 V |
| Output voltage accuracy (buck) | ±3 % |
| Switching frequency | 3 MHz |
| Startup time (BUCK1) | 250 ps |
| Operating temperature range | -40 °C to +125 °C |
The buck regulators operate from 2.3 V to 5.5 V.
BUCK1 starts up in 250 ps.
The device is rated for –40 °C to +125 °C.
