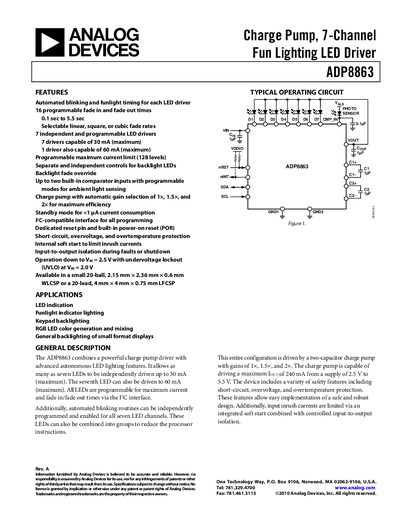

The ADP8863 Rev. A is a 7-channel Fun Lighting LED Driver from Analog Devices that features automated blinking and funlight timing.
The ADP8863 combines a charge‑pump driver with autonomous LED lighting features. It supports up to seven independent LED channels, each programmable for current limit, fade‑in/out timing and blinking patterns. One channel can be driven to 60 mA while the others are limited to 30 mA. The device includes built‑in protection (short‑circuit, over‑voltage, over‑temperature) and a standby mode with sub‑µA current draw.
The IC is offered in a 20‑ball WLCSP package (2.15 mm × 2.36 mm × 0.6 mm) and a 20‑lead LFCSP package (4 mm × 4 mm × 0.75 mm). It features an I²C‑compatible interface for programming, two comparator inputs for ambient‑light sensing, and automatic gain selection of 1×, 1.5× or 2× for the charge pump.
| Input Voltage Operating Range | 2.5 V to 5.5 V |
|---|---|
| Maximum LED Drive Current per Channel | 30 mA (one channel 60 mA) |
| Switching Frequency | 0.8 MHz to 1.32 MHz |
| Thermal Shutdown Threshold | 150 °C (hysteresis 20 °C) |
| ESD Protection (HBM) | 3 kV |
| Charge‑Pump Gain Options | 1×, 1.5×, 2× |
It provides seven independent LED drivers, with one channel capable of 60 mA and the others up to 30 mA.
Each channel can be programmed up to a maximum of 30 mA, and the seventh channel can be set to 60 mA.
The charge pump can operate with a gain of 1×, 1.5×, or 2× for maximum efficiency.
