The AD5291 and AD5292 are single‑channel digital potentiometers offering 256‑ or 1024‑position resolution, ±1 % resistor tolerance, and 20‑time programmable non‑volatile memory. They operate from a wide voltage range, supporting both single‑supply (9 V to 33 V) and dual‑supply (±9 V to ±16.5 V) configurations, and are available in 20 kΩ, 50 kΩ, and 100 kΩ nominal resistance options.

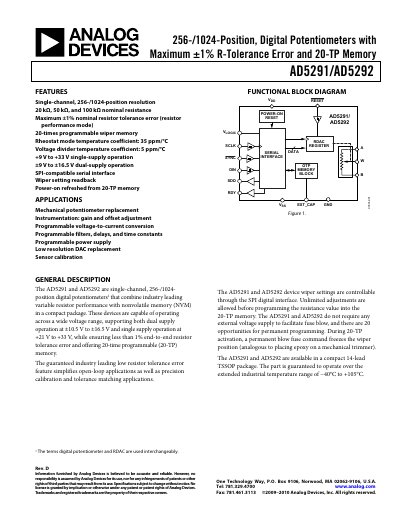

These devices are suited for applications such as mechanical potentiometer replacement, instrumentation gain/offset adjustment, programmable voltage‑to‑current conversion, and audio volume control. The datasheet includes detailed electrical characteristics, timing specifications, pin descriptions, and test circuits to aid designers.
| Resolution (AD5291) | 8 bits |
|---|---|
| Resolution (AD5292) | 10 bits |
| Nominal Resistance Options | 20 kΩ, 50 kΩ, 100 kΩ |
| Single‑Supply Voltage Range | 9 V to 33 V |
| Dual‑Supply Voltage Range | ±9 V to ±16.5 V |
| Operating Temperature Range | −40 °C to +105 °C |
| Resistor Tolerance (R‑Perf mode) | ±1 % |
| Non‑volatile Memory | 20‑time programmable (20‑TP) wiper memory |
They support a single‑supply range of 9 V to 33 V and a dual‑supply range of ±9 V to ±16.5 V.
Each device includes a 20‑time programmable (20‑TP) non‑volatile memory for wiper settings.
The devices operate from –40 °C up to +105 °C.
