The AD5512A/AD5542A is a single, 12-/16-bit, serial input, unbuffered voltage output digital-to-analog converter (DAC) that operates from 2.7 V to 5.5 V.
The AD5512A and AD5542A are single‑supply, 12‑/16‑bit, serial‑input, voltage‑output digital‑to‑analog converters (DACs) that operate from 2.7 V to 5.5 V. They provide unbuffered outputs with monotonic performance, low noise, and fast 1 µs settling time, making them suitable for precision instrumentation and high‑speed control.

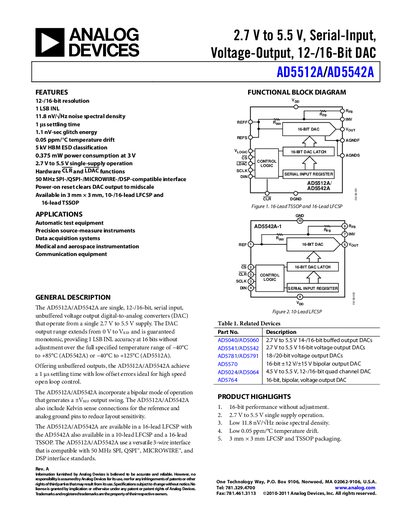

The datasheet includes functional block diagrams, pin configurations, electrical specifications, timing characteristics, absolute maximum ratings, and typical performance graphs. Ordering information and package options (10‑lead LFCSP, 16‑lead LFCSP, 16‑lead TSSOP) are also provided.
| Resolution | 12 bits (AD5512A) / 16 bits (AD5542A) |
|---|---|
| Supply Voltage Range | 2.7 V to 5.5 V |
| Power Consumption | 0.375 mW at 3 V |
| Noise Spectral Density | 11.8 nV/√Hz |
| Temperature Drift | 0.05 ppm/°C |
| ESD Rating | 5 kV HBM |
| Settling Time | 1 µs to 1/2 LSB |
| Output Impedance | 6.25 kΩ (typical 20 % tolerance) |
| Maximum Supply Current (IDD) | 125 µA – 150 µA |
Both devices operate from a single 2.7 V to 5.5 V supply.
The settling time is specified as 1 µs to reach ½ LSB of full scale.
The devices have a noise spectral density of 11.8 nV/√Hz.
The AD5542A is offered in 16‑lead LFCSP and 16‑lead TSSOP packages.
