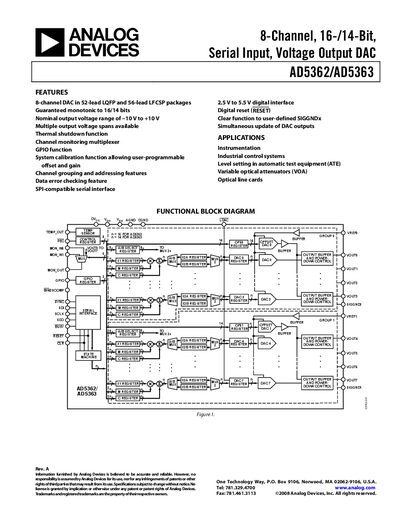

The AD5362/AD5363 is an 8-channel, 16/14-bit, serial input, voltage output DAC from Analog Devices
The AD5362 and AD5363 are eight‑channel, 16‑/14‑bit voltage‑output DACs offered in 52‑lead LQFP and 56‑lead LFCSP packages. They support a serial interface compatible with SPI, QSPI, MICROWIRE, and DSP standards, and can operate at clock speeds up to 50 MHz. Each channel provides programmable gain and offset, with optional grouping for flexible output ranges.
The handbook includes detailed specifications, pin‑out descriptions, timing diagrams, calibration procedures, power‑supply recommendations, and ordering information. It also contains functional block diagrams, application examples, and mechanical drawings for both package types.
| Resolution | 16 bits (AD5362) / 14 bits (AD5363) |
|---|---|
| Nominal Output Voltage Range | -10 V to +10 V |
| Gain Error | 0.1 % FSR (before calibration) |
| Zero‑Scale Error (pre‑calibration) | +15 mV max |
| Load Current | +1 mA max |
The devices support SPI, QSPI, MICROWIRE, and DSP interface standards.
Each device contains eight independent DAC channels.
The serial interface can handle clock speeds of up to 50 MHz.
The nominal output voltage range is –10 V to +10 V.
