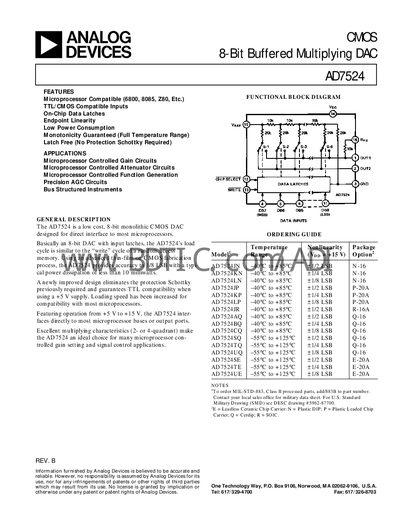

This document is the AD7524 datasheet, which introduces the features and characteristics of the product.
The AD7524 is a low‑cost, 8‑bit monolithic CMOS DAC designed for direct interface to most microprocessors. It features on‑chip data latches, guaranteed monotonicity over the full temperature range, and low power consumption.
The device operates from +5 V to +15 V and includes a functional block diagram, ordering guide, detailed specifications, pin configurations, and circuit description for both unipolar and bipolar operation modes.
| Resolution | 8 bits |
|---|---|
| Supply Voltage Range | +5 V to +15 V |
| Monotonicity | Guaranteed |
The AD7524 operates from +5 V to +15 V.
It provides an 8‑bit resolution.
Yes, monotonicity is guaranteed over the full temperature range.
