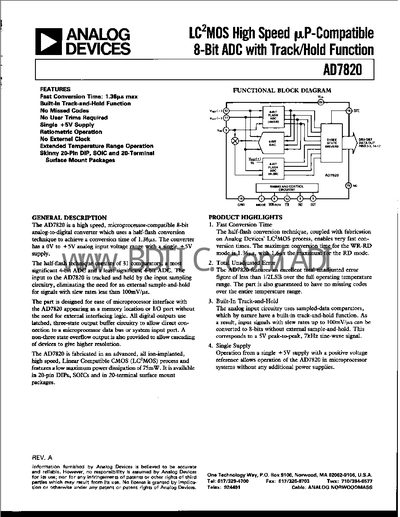

The AD7820 is a high‑speed 8‑bit analog‑to‑digital converter that uses a half‑flash conversion technique to achieve conversion times around 1.36 µs. It features a built‑in track‑and‑hold function, no missed codes, and operates from a single +5 V supply, making it easy to interface directly with microprocessors.
The document provides detailed specifications, timing characteristics, absolute maximum ratings, pin configurations, mechanical dimensions, and application information such as reference configurations and input circuitry. It also includes ordering information for the various DIP, SOIC and surface‑mount packages.
| Fast Conversion Time | 1.368 µs (max) |
|---|---|
| Power Dissipation | 75 mW (typ) |
| Supply Voltage | +5 V (single supply) |
The AD7820 converts in about 1.36 µs, with a maximum conversion time of 1.368 µs.
It operates from a single +5 V supply.
No, the device guarantees no missing codes over the full temperature range.
The AD7820 is offered in 20‑pin DIP, SOIC and 20‑terminal surface‑mount packages.
