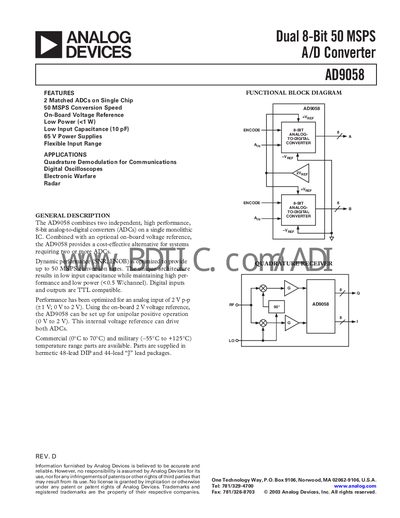

AD9058 is a dual 8-bit 50 MSPS A/D converter produced by Analog Devices
The AD9058 combines two independent 8‑bit ADCs on a single monolithic IC. It offers 50 MSPS conversion speed, low input capacitance, on‑board 2 V reference and low power consumption (<0.5 W per channel). The device is supplied in hermetic 48‑lead DIP and 44‑lead J‑lead packages.
Typical applications include quadrature demodulation for communications, digital oscilloscopes, electronic warfare and radar. The datasheet provides electrical characteristics, pin configurations, layout recommendations and timing diagrams for system designers.
| Input Capacitance | 10 pF |
|---|---|
| Power Consumption | <0.5 W per channel |
| Analog Input Range (internal reference) | 0 V to 2 V |
The typical input capacitance is 10 pF.
The device consumes less than 0.5 W per channel.
It is offered in hermetic 48‑lead DIP and 44‑lead J‑lead ceramic packages.
