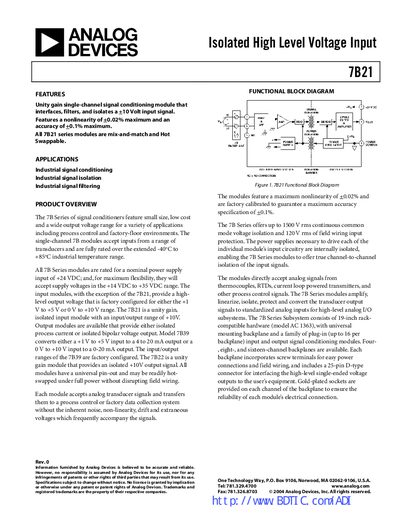

7B21 is a single-channel signal conditioning module manufactured by Analog Devices. It can accept a +10 volt input signal, with a nonlinearity of +0.02% maximum and an accuracy of +0.1% maximum. All 7B21 series modules are mix-and-match and Hot Swappable.
The 7B21 is a single‑channel signal‑conditioning module that isolates, filters and conditions a +10 V input signal, providing a protected precision output of +10 V. It features a nonlinearity of +0.02 % max, accuracy of +0.1 % max, and 1500 V rms continuous common‑mode voltage isolation with 100 dB CMR.
The module operates from a nominal +24 VDC supply (acceptable range +14 VDC to +35 VDC), works over –40 °C to +85 °C, and is hot‑swappable in the 7B Series backplane. Physical dimensions are 1.663" × 2.11" × 0.563" and it weighs 60 g.
| Input Range | -10 V to +10 V |
|---|---|
| Output Range | -10 V to +10 V |
| Nonlinearity | +0.02 % max |
| Accuracy | +0.1 % max |
| Common‑mode Isolation Voltage | 1500 V rms continuous |
| Common‑mode Rejection | 100 dB @ 50/60 Hz |
| Nominal Power Supply | +24 VDC (range +14 VDC to +35 VDC) |
| Operating Temperature Range | -40 °C to +85 °C |
| Mechanical Dimensions | 1.663" × 2.11" × 0.563" (42.24 mm × 53.6 mm × 14.3 mm) |
| Weight | 60 g |
The 7B21 provides up to 1500 V rms continuous common‑mode voltage isolation.
The typical accuracy is ±0.1 % maximum (±0.01 % typical).
