The ADE7953 is a high accuracy single phase electrical energy measurement IC that measures line voltage and current and calculates active power, reactive power, apparent power and energy.
The ADE7953 is a high‑accuracy single‑phase metering IC that measures active, reactive, and apparent energy as well as instantaneous voltage and current RMS. It includes a second current input for neutral current measurement and supports a variety of current sensors such as current transformers and Rogowski coils.

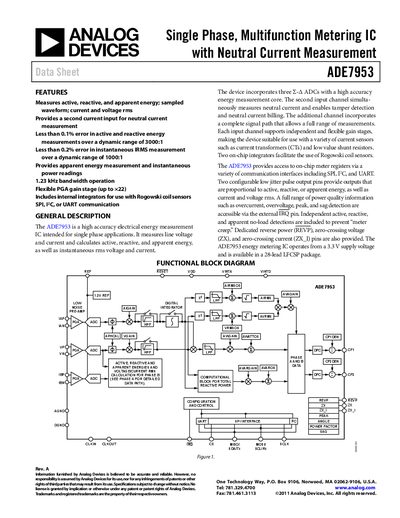

The document provides a functional block diagram, detailed specifications, timing characteristics for SPI and PC interfaces, pin configurations, calibration procedures, and interrupt descriptions. An ordering guide lists the available package options and evaluation board.
| Active Energy Measurement Error | 0.1 % |
|---|---|
| Active Energy Measurement Bandwidth | 1.23 kHz (-3 dB) |
| IRMS Measurement Error | 0.2 % |
| Maximum Signal Level (Differential) | +500 mV peak |
| Supply Voltage (VDD) | 3.3 V ±10% |
| Maximum Pulse Output Frequency | 206.9 kHz |
The ADE7953 provides access via SPI, PC, or UART communication interfaces.
The device has a 1.23 kHz (‑3 dB) bandwidth for active, reactive, and apparent energy measurements.
The IC operates from a 3.3 V supply with a tolerance of ±10 %.
The CF1 and CF2 pulse outputs can generate frequencies up to 206.9 kHz.
