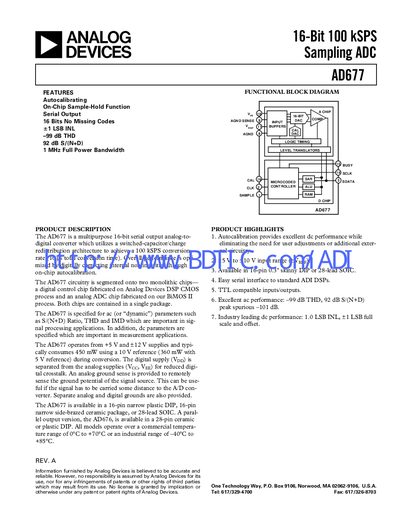

The AD677 is a multipurpose 16-bit serial output analog-to-digital converter which utilizes a switched-cap technology. It provides excellent dc performance and ac performance, making it suitable for a wide range of applications.
The AD677 is a multipurpose 16‑bit analog‑to‑digital converter featuring on‑chip autocalibration, a sample‑hold function and separate analog and digital grounds for reduced crosstalk. It operates from +5 V and +12 V supplies and is available in plastic DIP, ceramic DIP and SOIC packages.
The device uses a charge‑redistribution capacitor array and successive‑approximation conversion, providing -99 dB THD, 92 dB S/(N+D) and up to 100 kSPS sampling. Detailed specifications, pin descriptions, timing diagrams and ordering information are included.
| Resolution | 16 bits |
|---|---|
| Maximum Sampling Rate | 100 kSPS |
| Total Harmonic Distortion | -99 dB |
| Signal‑to‑Noise + Distortion Ratio | 92 dB |
| Typical Power Consumption | 450 mW (10 V reference) |
| Supply Voltage | +5 V and +12 V |
| Package Options | 16‑pin plastic DIP, 16‑pin ceramic DIP, 28‑lead SOIC |
It typically consumes 450 mW using a 10 V reference (360 mW with a 5 V reference).
The AD677 requires 17 clock pulses to execute a conversion.
The AD677 can achieve up to 100 kSPS conversion rate.
It is offered in 16‑pin plastic DIP, 16‑pin ceramic DIP, and 28‑lead SOIC packages.
