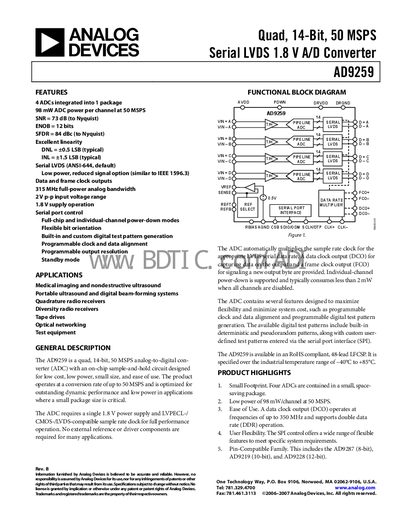

AD9259 Rev.B is a 14-bit 50MSPS serial LVDS 1.8V converter, providing 4 ADCs, low power consumption, good linearity, support for serial port control, power-down mode and other features.
The AD9259 is a quad, 14‑bit analog‑to‑digital converter capable of up to 50 MSPS conversion rate. It operates from a single 1.8 V supply and provides LVDS, LVPECL, or CMOS‑compatible outputs, with built‑in digital test pattern generation and programmable clock/data alignment.
Designed for compact, low‑power applications, the device is offered in a RoHS‑compliant 48‑lead LFCSP and is specified over an industrial temperature range (‑40 °C to +85 °C). Typical applications include medical imaging, portable ultrasound, quadrature radio receivers, optical networking, and test equipment.
| Resolution | 14 Bits |
|---|---|
| Maximum Sample Rate | 50 MSPS |
| Power per Channel | 98 mW @ 50 MSPS |
| Analog Bandwidth (Full Power) | 315 MHz |
| Input Voltage Range | 2 V p‑p differential |
| Effective Number of Bits (50 MSPS) | 12 bits |
| Total Power Dissipation | 409 mW |
The AD9259 operates from a single 1.8 V power supply.
The device supports a maximum clock rate of 50 MSPS.
The analog bandwidth is 315 MHz when operating at full power.
