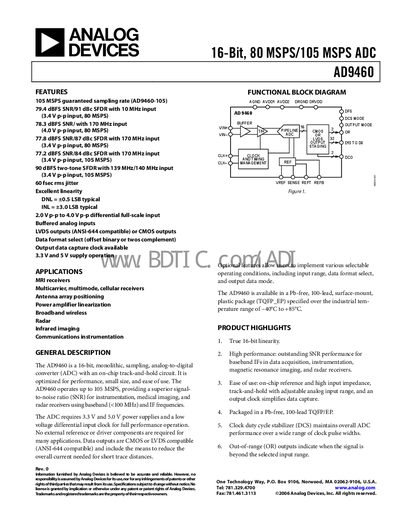

16-Bit, 80 MSPS/105 MSPS ADC AD9460 Rev. 0 is a ADC product produced by Analog Devices company. It has the features of 105 MSPS guaranteed sampling rate, 79.4 dBFS SNR/91 dBc SFDR, 60 fsec rms jitter, excellent linearity and so on.
The AD9460 is a 16‑bit, monolithic sampling ADC optimized for high performance, small size, and ease of use. It operates up to 105 MSPS and provides excellent SNR and SFDR for applications such as MRI receivers, broadband wireless, radar, and infrared imaging. The device requires 3.3 V and 5.0 V supplies and offers both LVDS (ANSI‑644 compatible) and CMOS output options.
The datasheet includes functional block diagrams, pin configurations, timing diagrams, absolute maximum ratings, thermal resistance data, and ordering information. Detailed electrical specifications cover DC, AC, digital, and switching parameters, along with typical performance characteristics and package dimensions.
| Resolution | 16 bits |
|---|---|
| Maximum Sampling Rate | 105 MSPS |
| Signal‑to‑Noise Ratio (10 MHz input) | 79.4 dBFS |
| LVDS Output Power Consumption | 1.8–2.2 W |
The AD9460 supports up to 105 MSPS sampling rate.
It requires AVDD1 3.3 V, AVDD2 5.0 V, and DRVDD 3.3 V.
The device offers LVDS (ANSI‑644 compatible) or CMOS outputs.
It accepts 2.0 V p‑p to 4.0 V p‑p differential full‑scale input.
