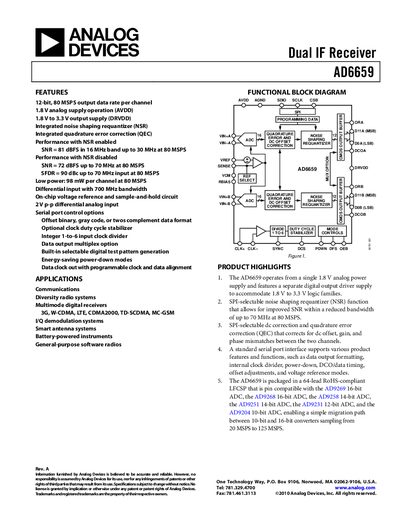

The AD6659 is a dual-channel IF receiver with a 12-bit, 80 MSPS output data rate per channel. It operates on a 1.8V analog supply and integrates features such as noise shaping requantizer (NSR) and quadrature error correction (QEC). It offers high signal-to-noise ratio, low power consumption, and is suitable for a variety of applications.
The AD6659 is a mixed‑signal, dual‑channel IF receiver that integrates two 12‑bit ADCs, a noise‑shaping requantizer (NSR) and quadrature error correction (QEC). It operates from a single 1.8 V analog supply with a separate 1.8 V‑3.3 V digital output driver supply and supports SPI‑controlled features such as programmable clock division, power‑down modes and digital test pattern generation.
The device is offered in a 64‑lead RoHS‑compliant LFCSP package, rated for –40 °C to +85 °C operation. Detailed specifications cover DC, AC, digital and switching parameters, along with pin configuration, timing diagrams and design guidelines for PCB layout and power management.
| Resolution | 12 bits |
|---|---|
| Maximum sample rate | 80 MSPS per channel |
| Power consumption (normal operation) | 98 mW per channel |
| Analog input bandwidth | 700 MHz |
| SNR with NSR enabled (16 MHz BW) | 81 dBFS |
| Supply voltage (AVDD) | 1.8 V |
| Supply voltage (DRVDD) | 1.8 V to 3.3 V |
The AD6659 can sample at up to 80 MSPS per channel.
It consumes about 98 mW per channel at 80 MSPS.
The analog input bandwidth is specified up to 700 MHz.
