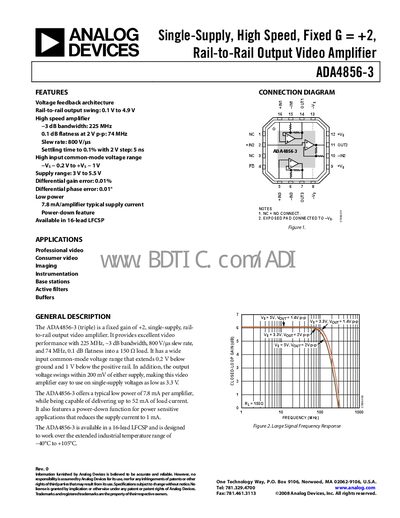

ADA4856-3 is a single-supply, high speed, fixed gain of +2, rail-to-rail output video amplifier from Analog Devices.
The ADA4856-3 video amplifier from Analog Devices is a single‑supply, high‑speed device with a fixed gain of +2 and rail‑to‑rail output swing. It is intended for professional and consumer video, imaging, instrumentation, base stations, active filters and buffer applications. The device operates over a wide temperature range (‑40 °C to +105 °C) and is available in a 16‑lead LFCSP package.
Key performance features include a 225 MHz –3 dB bandwidth, 800 V/µs slew rate, 0.1 V to 4.9 V output swing, low quiescent current (≈7.8 mA per amplifier) and a power‑down mode that reduces supply current to about 1 mA. The amplifier accepts supply voltages from 3 V to 5.5 V and offers a wide input common‑mode range extending below ground.
| -3 dB Bandwidth | 225 MHz |
|---|---|
| Slew Rate | 800 V/µs |
| Supply Voltage Range | 3 V to 5.5 V |
| Quiescent Current per Amplifier | 7.8 mA (typical) |
| Output Voltage Swing | 0.1 V to 4.9 V |
| Fixed Gain | +2 |
| Power‑Down Supply Current | ≈1 mA (disabled) / -125 pA (powered down) |
It operates from 3 V up to 5.5 V.
Typical quiescent current is about 7.8 mA per amplifier.
The output can swing from 0.1 V to 4.9 V.
The –3 dB bandwidth is 225 MHz.
