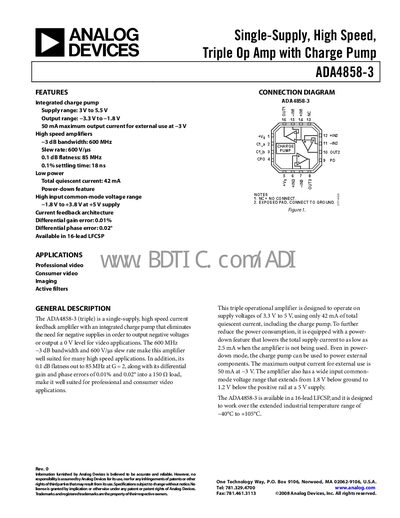

This document describes the features and characteristics of the ADA4858-3, a single-supply, high-speed, triple op amp with a charge pump. It features an integrated charge pump, wide supply range, high-speed amplifiers, low power consumption, etc.
The ADA4858-3 is a triple operational amplifier designed for video and high‑speed applications. It operates from a single supply of 3 V to 5.5 V and includes an integrated charge pump that eliminates the need for a negative supply.
Key features include a 600 MHz –3 dB bandwidth, 600 V/µs slew rate, low quiescent current of 42 mA (down to 2.5 mA in power‑down), and a maximum external output current of 50 mA at –3 V. The device is offered in a 16‑lead LFCSP package and is rated for –40 °C to +105 °C operation.
| Supply range | 3 V to 5.5 V |
|---|---|
| Output range | –3.3 V to –1.8 V |
| -3 dB bandwidth | 600 MHz |
| Total quiescent current | 42 mA |
| Power‑down quiescent current | 2.5 mA (typical) |
| Maximum external output current | 50 mA at –3 V |
It operates from 3 V up to 5.5 V.
The typical total quiescent current is 42 mA.
The amplifier can source up to 50 mA at –3 V for external use.
Yes, the device can reduce its quiescent current to as low as 2.5 mA when powered down.
