This is an instruction manual for an electric fan heater. The fan heater has 2 heating elements and can be adjusted in temperature. Before use, the supports must be installed first, and then the power can be turned on.

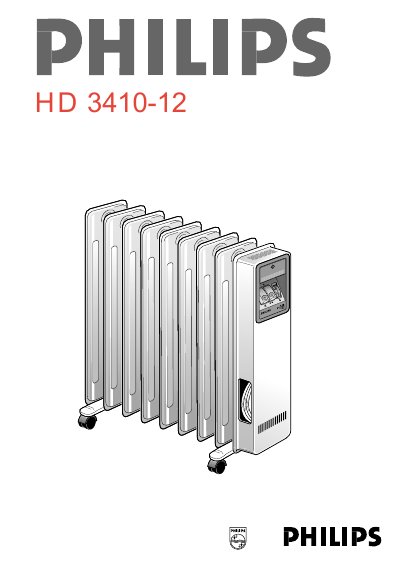

The HD3410-12 is an oil‑filled radiator heater with two heating elements, a thermostat knob, and optional wheels for mobility. The heating elements warm the oil inside the radiator, producing natural convection airflow and radiant heat.
The manual covers safety precautions, mounting the wheels, connecting to a correctly rated fuse, setting power levels with switches A and B, adjusting the thermostat (positions 1‑10), and cleaning the exterior and ventilation openings. It also explains plug replacement and wiring requirements for different regions.
| Voltage | 220‑240 V AC |
|---|---|
| Fuse rating (HD 3410/3411) | 10 A or higher |
| Fuse rating (HD 3412) | 13 A or higher |
| Thermostat range | 1 – 10 (1 = minimum, 10 = maximum) |
Use a 13 A (or higher) fuse when connecting the heater to a UK 240 V outlet.
Maintain at least 50 cm (approximately 20 inches) of clearance from furniture, curtains, or other flammable items.
No. The manual warns that water and electricity are a dangerous combination and the heater must not be used near baths, showers, or pools.
