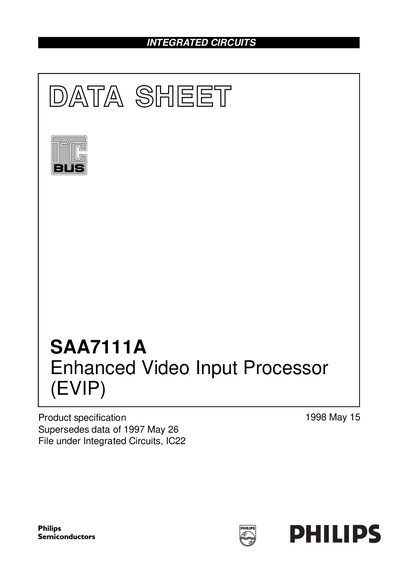

This data sheet provides detailed information on the Philips SAA7111A Enhanced Video Input Processor (EVIP), including features, applications, specifications, commands and I2C bus details.
The Philips SAA7111A is an Enhanced Video Input Processor (EVIP) that integrates analog front‑end, digital video decoding and VBI data handling for desktop video applications. It supports multiple video standards (PAL, NTSC, SECAM) and provides configurable output formats such as YUV and RGB.
The datasheet details the device’s electrical characteristics, pin configuration, package options, and functional blocks, including gain control, clock generation, and I²C‑bus control. It also lists ordering information and boundary‑scan test specifications.
| Digital supply voltage (Vppp) | 3.0 V – 3.6 V (typ 3.3 V) |
|---|---|
| Analog supply voltage (Vopa) | 3.1 V – 3.5 V (typ 3.3 V) |
| Operating ambient temperature | 0 °C – 70 °C (typ 25 °C) |
| Power consumption | ≤ 0.5 W |
The device operates from 3.0 V to 3.6 V, with a typical value of 3.3 V.
It is specified for an ambient temperature range of 0 °C to 70 °C.
Supported formats include YUV 4:1:1 (12‑bit), YUV 4:2:2 (16‑bit), YUV 4:2:2 (CCIR‑656) (8‑bit), RGB 5‑6‑5 (16‑bit) with dither, and RGB 8‑8‑8 (24‑bit).
