This document is a copyright notice and usage restriction for the A8V-VM Ultra ii motherboard by ASUSTeK COMPUTER INC. The features and characteristics of this motherboard include the year, authorized repairs and modifications, product serial number, etc.

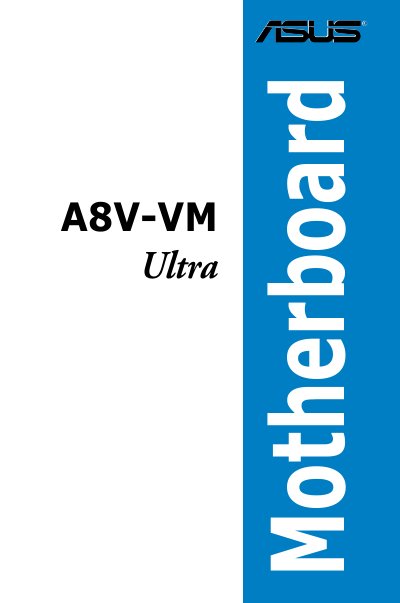

This manual introduces the A8V-VM Ultra motherboard, its layout, connectors, jumpers, and supported components. It guides users through hardware installation, CPU and memory setup, and explains the various expansion slots.
The guide also covers BIOS setup utilities, software support on the included CD, safety precautions, FCC/IC compliance statements, and contact information. Detailed specifications for the chipset, memory, audio, USB, and networking are listed for reference. This manual is written in Chinese.
| Chipset | Northbridge VIA K8M890, Southbridge VIA VT8237A |
|---|---|
| Expansion slots | 1 × PCI Express x16, 1 × PCI Express x1, 2 × PCI, 2 × PCI slots |
| Audio codec | Realtek ALC660 6‑channel CODEC |
| USB ports | Up to 8 USB 2.0 ports |
| LAN | Realtek RTL8201CL 10/100M Ethernet PHY |
The board supports up to eight USB 2.0 ports.
It includes a Realtek ALC660 6‑channel audio codec.
