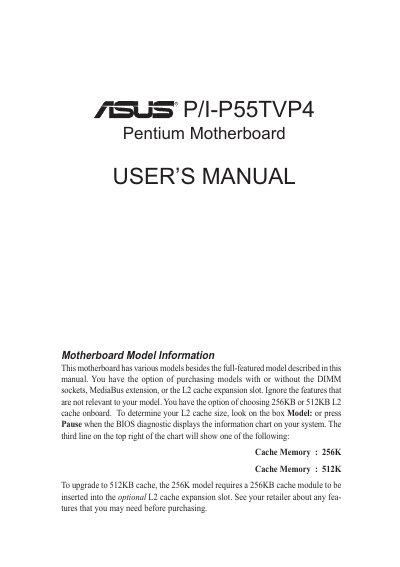

ASUS P/I-P55TVP4 Motherboard User Manual

This manual introduces the features and characteristics of the P/I-P55TVP4 motherboard.

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 64
File format: PDF
File size: 706 KB
Published: 22 March, 2012
Updated: 01 October, 2023
MD5 checksum: B230FFBD6AC4ACE35DBEC77CDE8660D9
PDF: ASUS P/I-P55TVP4 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASUS P/I-P55TVP4 motherboard, including a checklist of required items, detailed installation procedures, and BIOS configuration options. It also lists supported CPUs, memory types, expansion slots, and optional features such as MediaBus and SCSI cards.

Additional sections describe the Desktop Management Interface (DMI), power‑management settings, and troubleshooting tips for FCC compliance and SCSI termination. The document includes contact information for ASUS technical support worldwide.

What's inside

Introduction
Features
Installation
BIOS Software
Support Software
ASUS SCSI Cards
Desktop Management Interface
Power Management
PCI SCSI Cards

Specifications

Chipset	Intel 430VX PCIset
Expansion slots	3 × 16‑bit ISA, 3 × 32‑bit PCI, 1 × PCI/MediaBus
L2 cache options	0 KB, 256 KB, or 512 KB on‑board; upgradeable via pipelined burst SRAM module

Frequently asked questions

Can the L2 cache be upgraded?

Yes, the board has an optional L2 cache expansion slot; a 256 KB module can be replaced with a 512 KB module.
