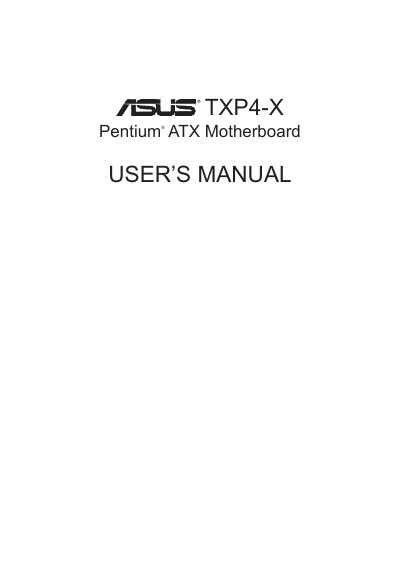

ASUS TXP4-X Motherboard User Manual

ASUS TXP4-X Motherboard User's Manual, details the functions and usage of the motherboard

Brand: ASUS
Category: Other device
Document type: User Manual
Language: English
Pages: 62
File format: PDF
File size: 746 KB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: E6C8ED2385933C41C7C0D04669411C03
PDF: ASUS TXP4-X Motherboard User Manual PDF

About this manual

This manual provides comprehensive information for the ASUS TXP4-X ATX motherboard, including hardware specifications, installation procedures, jumper settings, memory and CPU installation, and detailed BIOS setup instructions. It also contains support software details and optional SCSI card configuration.

Key sections include an introduction with a checklist, a feature overview, step‑by‑step installation guidance, BIOS and power‑management configuration, and a dedicated chapter for ASUS PCI‑SCSI cards with jumper and termination settings.

What's inside

Introduction
Features
Installation
BIOS Setup
Support Software
ASUS PCI SCSI Cards
Jumpers and Termination
SCSI ID Configuration

Specifications

Chipset	Intel 430TX PCIset
Supported CPUs	Intel Pentium 75‑233 MHz, IBM/Cyrix 6x86‑PR166+, AMD‑K5, AMD‑K6
Expansion Slots	Four 16‑bit ISA slots, four 32‑bit PCI slots
Level 2 Cache	512 KB Pipelined Burst SRAM
I/O Ports	Two UART serial ports, one parallel port (EPP/ECP)

Frequently asked questions

How many SCSI devices can be connected to the ASUS PCI‑SC200 card?

Up to seven SCSI devices can be attached to the card, using IDs 0‑6 while the card itself uses ID 7.

What is the Level 2 cache size on the TXP4‑X motherboard?

The motherboard includes a 512 KB Level 2 cache.
