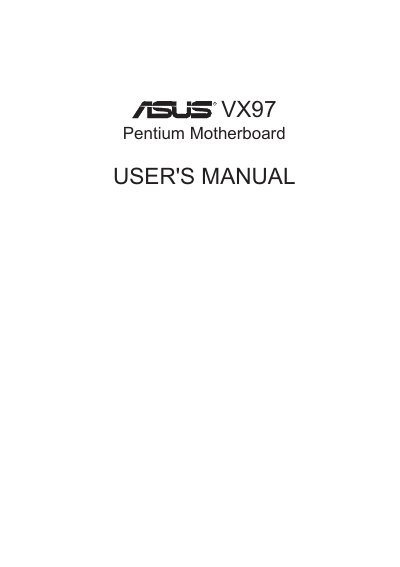

ASUS VX97 Motherboard User Manual

This document is the user manual for ASUS VX97 Pentium Motherboard, describing the features and characteristics of the motherboard.

Brand: ASUS
Document type: User Manual
Language: English
Pages: 60
File format: PDF
File size: 709 KB
Published: 22 March, 2012
Updated: 28 September, 2023
MD5 checksum: 0D0CDDE859D2DEE9941C967BFAF1E0B9
PDF: ASUS VX97 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the ASUS VX97 motherboard, including a checklist of supplied items, detailed installation steps, jumper settings, and BIOS configuration. It also describes optional add‑on cards such as the ASUS PCI‑SC200 SCSI card and the I‑A16C audio card.

Additional sections explain the Desktop Management Interface (DMI), supported CPUs, memory types, expansion slots, and troubleshooting tips. The document includes FCC compliance information and contact details for technical support worldwide.

What's inside

Introduction
Features
Installation
BIOS Setup
Software
ASUS SCSI Cards
ASUS I‑A16C Audio Card
Desktop Management Interface
FCC Compliance

Specifications

Chipset	Intel 430VX
L2 Cache	256 KB or 512 KB
Expansion Slots	3 PCI slots, 3 ISA slots, 1 PCI/ISA shared slot

Frequently asked questions

How many PCI slots does the VX97 provide?

It provides three dedicated PCI slots plus one PCI/ISA shared slot.

How does the BIOS detect hard drives automatically?

Select the Auto setting for each drive in the BIOS; the system will auto‑detect the drive type during boot‑up.
