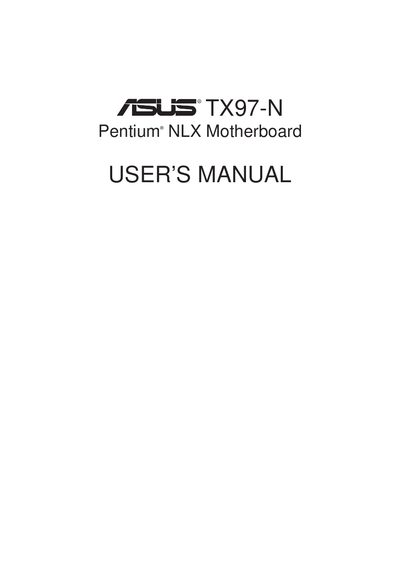

This user manual is about the ASUS TX97-N Pentium ® NLX motherboard. The manual describes the features and characteristics of the product.
This user manual guides you through the ASUS TX97-N motherboard, covering its specifications, hardware layout, and required components. It includes checklists, safety notices, and contact information for technical support.
The document is organized into sections on features, installation procedures, BIOS setup, support software, and optional ASUS SCSI and LAN cards. It also contains FCC compliance statements and a Q&A about Wake‑On‑LAN and other advanced functions.
| Chipset | Intel 430TX PCIset |
|---|---|
| Onboard VGA | ATI 3D Rage VGA with 1 MB (upgradable to 2 MB) |
| Onboard Audio | Yamaha 16‑bit audio |
| Supported CPUs | Intel Pentium® 75–233 MHz (P55C‑MMX™, P54C/ P54CS) |
| Memory | Two DIMM sockets, 8‑128 MB per module, up to 256 MB total |
| Expansion Slots | 1 × 16‑bit ISA, 2 × 32‑bit PCI |
| L2 Cache | 512 KB pipelined burst SRAM |
| LAN Controller | Intel 82558 Ethernet (10BASE‑T/100BASE‑TX) |
Wake‑On‑LAN provides the capability to remotely power on systems by sending a wake‑up frame.
You must use PCI INT A; the default setting is already INT A.
Both cards have a fixed SCSI ID of 7.
