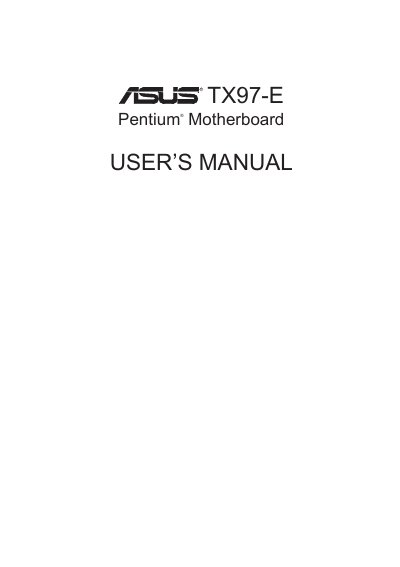

ASUS TX97-E Motherboard User Manual

This is a user's manual for the ASUS TX97-E motherboard

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: English
Pages: 64
File format: PDF
File size: 826 KB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: TX97
MD5 checksum: D9F105F044FA2334F53864FF04D2411E
PDF: ASUS TX97-E Motherboard User Manual PDF

About this manual

This manual covers the ASUS TX97‑E motherboard, describing its hardware layout, supported CPUs, memory options, power supplies, and expansion slots. It also includes instructions for installing the board, configuring BIOS settings, and using optional ASUS PCI‑SCSI cards.

Additional sections provide support software information, troubleshooting tips, and detailed jumper and SCSI configuration guidance, helping users set up and maintain the system safely and efficiently.

What's inside

Introduction
Features
Installation
BIOS Software
Support Software
ASUS PCI SCSI Cards

Specifications

Chipset	Intel 430TX PCIset
Power Supply	Dual AT and ATX power connectors
Expansion Slots	3 × 16‑bit ISA, 3 × 32‑bit PCI, 1 × PCI/MediaBus/ISA shared slot

Frequently asked questions

How many expansion slots does the motherboard provide?

It provides three 16‑bit ISA slots, three 32‑bit PCI slots, and one shared PCI/MediaBus/ISA slot.

Can the TX97‑E be powered by both AT and ATX power supplies?

Yes, the board includes both AT and ATX power connectors for flexible power‑supply options.
