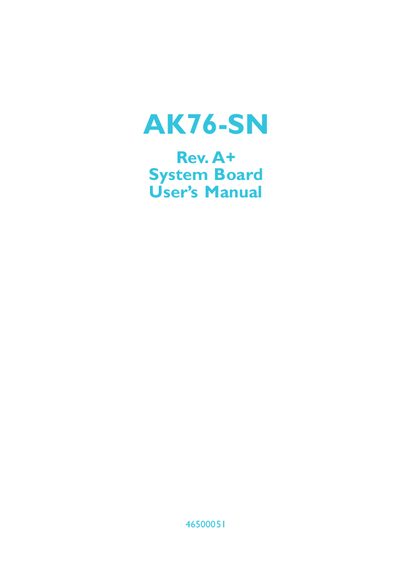

This manual introduces the AK76‑SN Rev. A+ system board, detailing its chipset, CPU socket, memory support, expansion slots, ports and connectors. It provides a package checklist, hardware installation instructions, and guidance on selecting CPU frequency, core voltage, and jumper settings.
The document also describes the Award BIOS setup utility, power‑management features, supported software, and includes appendices with system error messages and a troubleshooting checklist to help resolve common issues.
| CPU Socket | Socket‑A for 462‑pin PGA processor |
|---|---|
| Supported CPUs | AMD Athlon (Thunderbird) / Duron 500 MHz and faster |
It uses a Socket‑A for a 462‑pin PGA processor.
