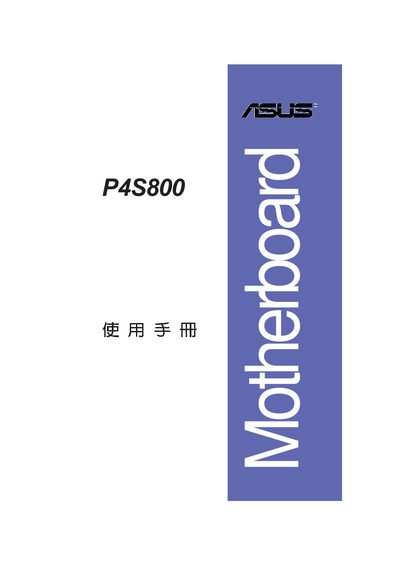

This document is an instruction manual for the P4S800 2 T1380 motherboard. The motherboard features Jumper Free design, supports Socket 478 CPUs, and offers various interfaces such as USB and SPDIF, providing good expandability and stability.
This manual introduces the ASUS P4S800 motherboard, covering its key features, component layout, and safety precautions before installation. It explains the required steps for installing the CPU (Socket‑478 Pentium 4), memory modules, and other peripherals.
The guide also details BIOS setup, jumper configuration, and the Instant Music Lite feature that can be enabled via the BIOS Advanced menu. Contact information for ASUS technical support worldwide is provided at the end of the document. This manual is written in Chinese.
| CPU socket | Socket‑478 Pentium 4 |
|---|---|
| BIOS feature | Crashfree BIOS 2 |
The default jumper setting is "Jumper Mode" as shown in the jumper diagram.
