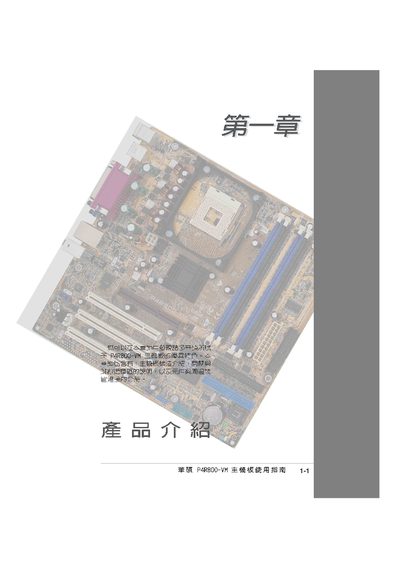

ASUS P4R800-VM Motherboard User Manual

P4R800-VM motherboard User Manual

Brand: ASUS
Category: Other device
Document type: User Manual
Language: English
Pages: 54
File format: PDF
File size: 3.9 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: P4R800-VM
MD5 checksum: D4D68B13604F637CB9FFCF6B164977A2
PDF: ASUS P4R800-VM Motherboard User Manual PDF

About this manual

This manual covers the installation of the CPU, memory, and expansion cards for the ASUS P4R800-VM motherboard. It also explains BIOS configuration, USB 2.0 setup, and integrated graphics options.

Additional sections describe the onboard audio, network interfaces, and utility software such as ASUS PC Probe and Live Update, helping users maintain and troubleshoot the system.

What's inside

CPU Installation
Memory Installation
Expansion Slots
BIOS Setup
USB Configuration
Integrated Graphics
Audio
Network
Utilities

Specifications

CPU Socket	Socket 478
Front‑Side Bus	800/533/400 MHz
L2 Cache	256 KB
Integrated Graphics	ATI Radeon 9100 IGP
IDE Interface	UltraATA IDE
Hyper‑Threading	Supported

Frequently asked questions

What CPU socket does the ASUS P4R800-VM motherboard use?

It uses a Socket 478 for Intel Pentium 4 processors.

What integrated graphics are provided on this board?

The motherboard has an ATI Radeon 9100 integrated graphics processor.

Is Hyper‑Threading technology supported?

Yes, the board supports Intel Hyper‑Threading.
