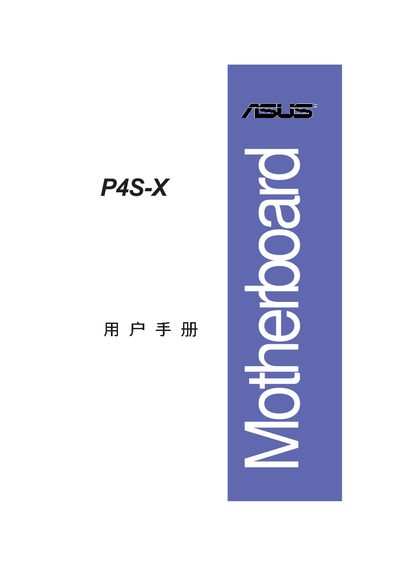

ASUS P4S-X Motherboard User Manual

This is a PCB diagram of P4S-X 2 C1366 motherboard

Brand: ASUS
Category: Motherboard
Document type: User Manual
Language: Chinese
Pages: 64
File format: PDF
File size: 3.8 MB
Published: 22 March, 2012
Updated: 30 September, 2023
MD5 checksum: 1CC97C159EA73F8629EB9FF9E9D9F734
PDF: ASUS P4S-X Motherboard User Manual PDF

About this manual

This manual introduces the ASUS P4S‑X motherboard, describing its components, packaging, and special features. It guides users through installation steps, including CPU socket placement, memory installation, and jumper configuration.

The document also covers BIOS configuration, software drivers, and where to obtain updates or additional product information through ASUS’s website and support channels. This manual is written in Chinese.

What's inside

Product Introduction
Safety Information
Installation Guide
BIOS Program Settings
Jumper and Switch Settings
Software Support
Contact Information

Specifications

CPU socket	Socket 478
BIOS upgrade method	Use ASUS AFLASI utility
Supported audio driver	AD1980 SoundMAX audio driver

Frequently asked questions

How can I upgrade the BIOS on the P4S‑X motherboard?

Use the ASUS AFLASI utility to upgrade the BIOS program.

Where can I find product information and driver updates for the P4S‑X?

Visit the ASUS website or refer to the documents included in the product packaging.
