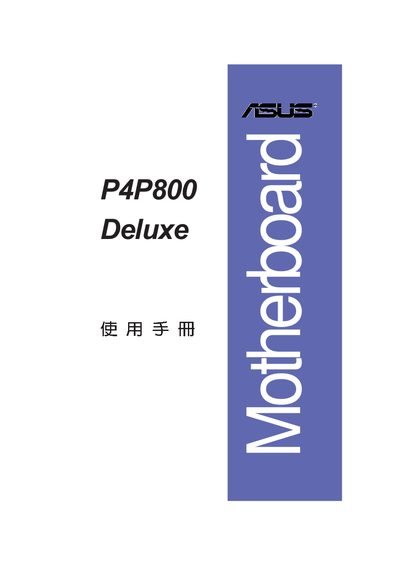

ASUS P4P800 Deluxe Motherboard User Manual

P4P800 Deluxe 2 motherboard specifications, features and functions

Brand: ASUS
Category: Other
Document type: User Manual
Language: Japanese
Pages: 150
File format: PDF
File size: 8.6 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: P4P800
MD5 checksum: 9B23F0C98E9F935FCB064AB450C7712D
PDF: ASUS P4P800 Deluxe Motherboard User Manual PDF

About this manual

This manual covers the complete setup of the ASUS P4P800 Deluxe motherboard, including product overview, hardware installation, power‑on procedures, and BIOS configuration. Detailed steps guide users through component mounting, jumper settings, and connector wiring.

Later sections describe software utilities, RAID configuration, network cable testing, and a glossary of technical terms, helping both beginners and technicians maintain the system. This manual is written in Japanese.

What's inside

Product Introduction
Hardware Installation
Power On Procedure
BIOS Settings
Software Support
Glossary

Specifications

CPU Socket	Socket‑478 (Pentium)
PCI Support	PCI PnP

Frequently asked questions

How do I install the P4P800 Deluxe motherboard?

Chapter 2 of the manual provides step‑by‑step instructions for mounting the board, setting jumpers, and connecting power and data cables.

How can I update the BIOS on the P4P800 Deluxe?

Use the FUDOS utility or the ASUS BZ Flash tool as described in Section 4.1.2 and 4.1.3 to flash the BIOS.
