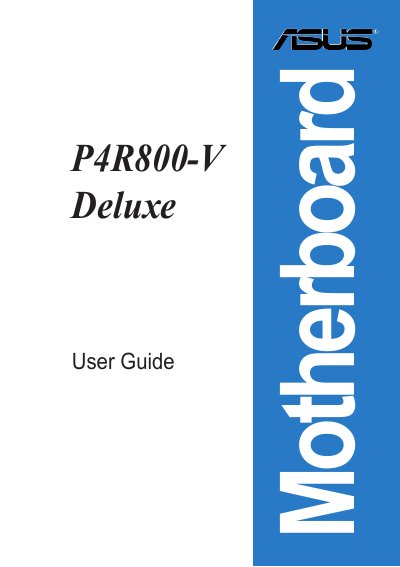

This document is a user guide for the ASUSTeK COMPUTER INC. P4R800-V Deluxe motherboard. It provides detailed information about the features and characteristics of the motherboard.
The ASUS P4R800-V Deluxe Motherboard User Guide explains how to install and configure the board, covering CPU installation, memory setup, expansion slots, and power connections. It also includes safety information, FCC compliance notes, and troubleshooting tips.
Key sections include hardware information, power‑up procedures, BIOS setup menus, RAID configuration, and software support tools such as the Marvell Virtual Cable Tester and Makedisk utility. The guide ends with a quick reference card and contact information.
| CPU socket | Socket 478 for Intel Pentium 4/Celeron up to 3.2+ GHz |
|---|---|
| Memory slots | 4 DDR DIMM sockets, up to 4 GB total |
| AGP slot | 1 × AGP 8X/4X (1.5 V only) |
| Wi‑Fi interface | 1 × Wi‑Fi connector |
| Serial ATA ports | 2 × SATA with RAID0/1/0+1 support |
| LAN controller | Marvell 88E001 Gigabit Ethernet (10/100/1000 BASE‑T) |
| Audio codec | ADI AD1888 SoundMAX 6‑channel CODEC |
| USB ports | 4 × USB 2.0 ports (plus connector for 2 more) |
| Form factor | ATX, 12 in × 9.6 in (30.5 cm × 24.5 cm) |
Open the Configuration tab, select the Create Raid tab, choose RAID 0, set the block size and mode, add at least two disks, and click Create.
It uses Time Domain Reflectometry to detect open, short, impedance mismatches, pair swaps, polarity problems, and skew in network cables.
The board provides four USB 2.0 ports on the rear panel and an additional connector for two more USB ports.
