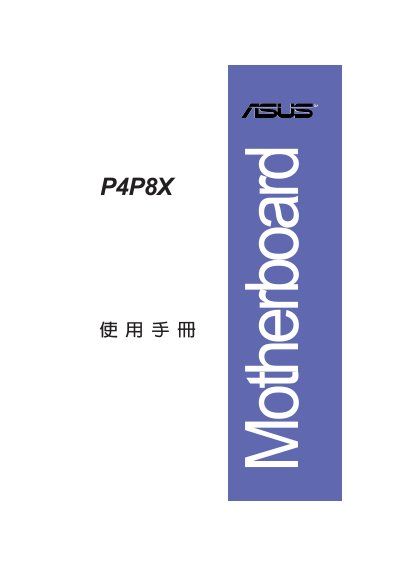

This document is a manual for the P4P8X 2 T1299 motherboard. The motherboard is an ATX form factor motherboard that supports Socket 478 processors. It features Jumper Free functionality and provides multiple slots and interfaces, such as DDR DIMM sockets, AGP slots, USB ports, etc. The motherboard also comes with multiple power connectors and expansion slots.
This guide explains how to install and configure the ASUS P4P8X motherboard. It covers product introduction, safety information, BIOS programming, software support, and hardware jumper/LED settings.
Key sections include detailed BIOS options, instructions for using EZ Flash to update the BIOS, jumper configuration diagrams, and safety warnings to prevent electrical hazards during installation. This manual is written in Chinese.
| Legacy Diskette Support | 1.44M, 3.5 inch |
|---|---|
| ACPI 2.0 Support | No |
| ACPI AP1C Support | Enabled |
Use the EZ Flash utility (or FedorOS) to flash the BIOS program.
Place the jumper on pins 1‑2 for Jumper Mode or on pins 2‑3 for Jumper Free mode.
