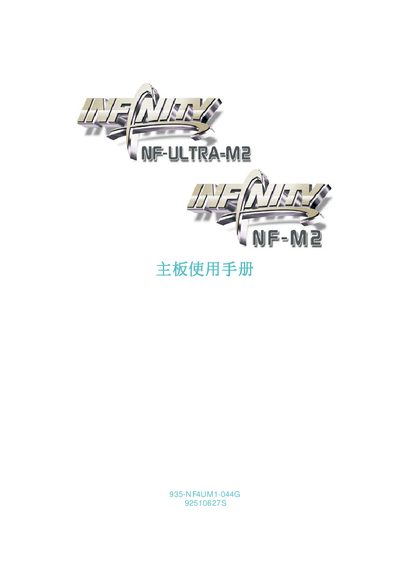

Infinity NF-M2 Motherboard User Manual

This manual mainly introduces how to use the motherboard

Brand: Infinity
Document type: User Manual
Language: Chinese
Pages: 128
File format: PDF
File size: 5.4 MB
Published: 22 March, 2012
Updated: 30 September, 2023
Model: NF-M2
MD5 checksum: 2FDEE6B049FFC07343ED548071D2899B
PDF: Infinity NF-M2 Motherboard User Manual PDF

About this manual

This manual covers everything needed to install and configure the Infinity NF-M2 motherboard, including safety precautions, static‑prevention measures, and a detailed parts list. It also explains BIOS settings, software support, Cool'n'Quiet technology, and RAID configuration options.

Additional sections guide users through hardware installation, connector descriptions, power‑management features, and a comprehensive troubleshooting appendix with error‑code explanations and repair checklists. This manual is written in Chinese.

What's inside

Product Warranty
Static Prevention Measures
Safety Precautions
Packaging Details
Related Components
Hardware Installation
BIOS Settings
Software Support
Cool'n'Quiet Technology
RAID Levels

Specifications

CPU Socket	AM2
Front Side Bus	2000 MT/s
Chipset	NVIDIA nForce4 Ultra
Memory Slots	Four 240‑pin DDR2 DIMM slots, up to 4 GB, dual‑channel
SATA Ports	Two SATA‑I (1.5 Gb/s) and two SATA‑II (3 Gb/s) ports

Frequently asked questions

What power‑supply requirements are needed for USB keyboard/mouse wake‑up on this board?

When using two USB ports, the 5VSB line must supply at least 1.5 A; with three or more ports it must supply at least 2 A.

Which operating systems support the ACPI Suspend‑to‑RAM feature on this motherboard?

Only Windows 2000 and Windows XP are listed as supporting ACPI Direct Power Management for this board.
