Key facts
- Brand
- Infinity
- Model
- NF-M2
- Documents
- 3
- Languages
- ZH · EN
- Last added
- 2012-03-22
Start here

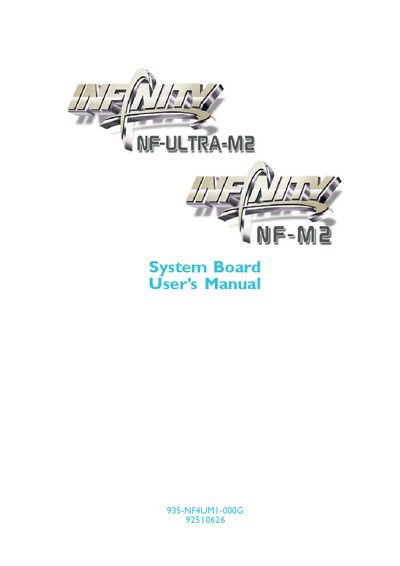

INFINITY NF-UL TRA-M2/NF-M2 Manual
This manual covers safety warnings, FCC compliance information, and precautions for handling the system board, including electro‑static discharge (ESD) protection and proper power connections. It also explains how to register the product, warranty terms, and the responsibilities of the user.
Detailed sections describe the system board layout, memory and jumper settings, rear‑panel I/O ports, BIOS setup utility, BIOS updating procedures, and troubleshooting steps for hard‑drive, serial/parallel ports, memory modules, and add‑in cards.
Infinity NF-M2 specifications
| CPU Socket | AM2 |
|---|---|
| Front Side Bus | 2000 MT/s |
| Chipset | NVIDIA nForce4 Ultra |
| Memory Slots | Four 240‑pin DDR2 DIMM slots, up to 4 GB, dual‑channel |
| SATA Ports | Two SATA‑I (1.5 Gb/s) and two SATA‑II (3 Gb/s) ports |
All Infinity NF-M2 documents by type
Day-to-day operation, settings and troubleshooting. Start here if the product is already set up.
Questions answered in these manuals
What power‑supply requirements are needed for USB keyboard/mouse wake‑up on this board?
When using two USB ports, the 5VSB line must supply at least 1.5 A; with three or more ports it must supply at least 2 A.
Which operating systems support the ACPI Suspend‑to‑RAM feature on this motherboard?
Only Windows 2000 and Windows XP are listed as supporting ACPI Direct Power Management for this board.
