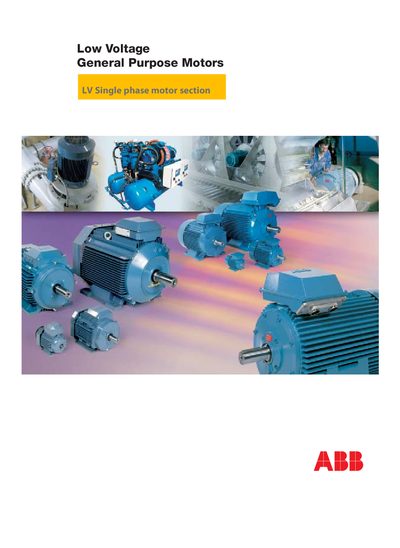

This is the specification manual for ABB low voltage general purpose motor single phase motor
The document is a catalogue of ABB low‑voltage general‑purpose motors, covering a range of sizes, construction types and applications. It includes general information, standards compliance, mounting arrangements, cooling methods, insulation classes and protection ratings.
Key sections describe mechanical and electrical design, cooling options, insulation class F details, IP and IK protection codes, as well as a list of ABB manufacturing sites and sales contacts worldwide.
| Size range | 56 to 400 mm, 0.055 to 630 kW |
|---|---|
| Insulation class | Class F (with Class B temperature rise) |
| Maximum ambient temperature | 40 °C |
ABB uses class F insulation systems, which together with a Class B temperature rise provide a safety margin of up to 25 °C.
