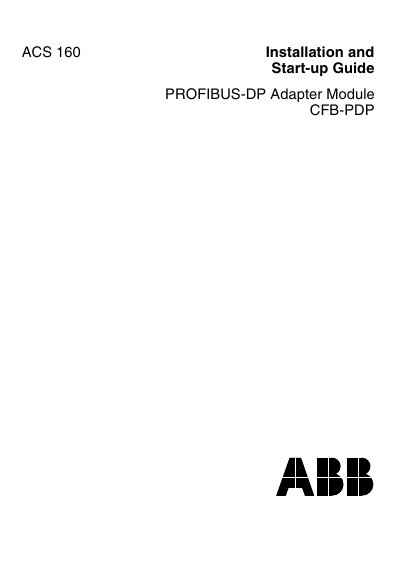

This document is the installation and start-up guide for the ACS 160 PROFIBUS-DP Adapter Module CFB-PDP from ABB Industry Oy. The document provides safety instructions that must be followed when installing and operating the adapter module. It also includes warnings and notes on how to avoid dangerous situations that can result in serious faults, physical injury, and death.
This guide provides safety instructions, installation steps, and configuration procedures for the ABB CFB‑PDP PROFIBUS‑DP adapter module used with ACS 160 drives. It includes detailed wiring diagrams, programming parameters, and communication setup.
The document also lists technical data such as enclosure dimensions, IP rating, power consumption, connector types, and environmental limits for both operation and storage, helping installers ensure correct and reliable deployment. This manual is written in Chinese.
| Enclosure dimensions (mm) | 124×79×42 |
|---|---|
| Degree of protection | IP65 |
| Current consumption | 280 mA |
| Fieldbus connector | Phoenix Contact MC1,5/6‑ST‑3,81 (6‑pole, 1.5 mm² max.) |
| Operating temperature range | -10 °C to +50 °C |
The module has an IP65 rating.
The module can operate between -10 °C and +50 °C.
A Phoenix Contact MC1,5/6‑ST‑3,81 6‑pole terminal block (max 1.5 mm²) is used.
