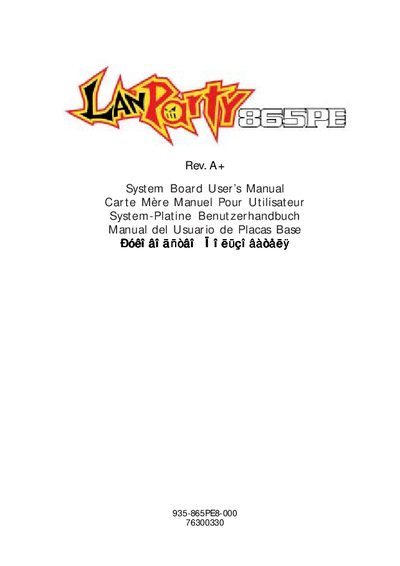

This document is a user manual for the P865PE8 motherboard. It introduces the features and characteristics of the motherboard as well as the installation and use methods.
This manual guides users through the quick setup of the LanParty 865PE motherboard, covering layout, jumper configuration, and connector pin‑outs. It also includes safety warnings, FCC compliance notes, and battery handling instructions.
The document is organized into chapters for each language version and detailed sections on the system board layout, jumpers, rear panel I/O ports, SPDIF connections, and power‑select options. Technical specifications such as the CPU socket, chipset, and AGP slot are listed for reference.
| CPU Socket | Socket 478 |
|---|---|
| Chipset | Intel 865PE |
| AGP Slot | AGP Slot 1 |
Unplug the power cord before removing the system chassis cover and use the correct AC input voltage range.
Set the Clear CMOS jumper as described in section 12.1; the jumper positions 1‑2 and 2‑3 control normal operation and CMOS clearing.
