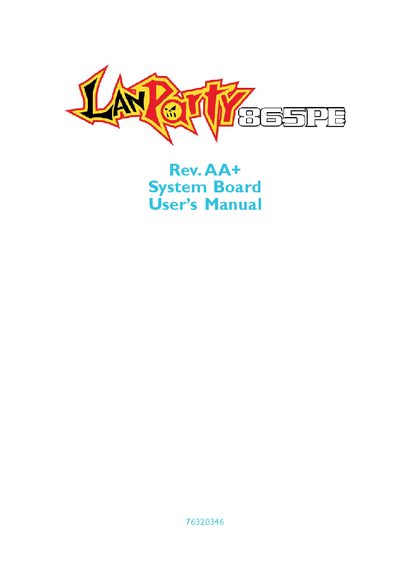

865PE Motherboard User Manual

This manual introduces the hardware connection and system installation steps of 76320346 Rev. AA+ system board.

Brand: LanParty
Category: Motherboard
Document type: User Manual
Language: English
Pages: 145
File format: PDF
File size: 3.1 MB
Published: 09 April, 2012
Updated: 30 September, 2023
Model: 865PE
MD5 checksum: E5C2BDD55F63416D01D1DF2179A3D38F
PDF: 865PE Motherboard User Manual PDF

About this manual

This manual provides detailed information about the 865PE system board, including safety precautions, hardware layout, and BIOS configuration. It explains how to install the board, connect peripherals, and configure system settings such as memory, CPU, and power management.

The document also includes troubleshooting tips, jumper settings, and specifications for supported processors, memory modules, and expansion slots. Reference tables list the features, connector types, and BIOS utilities available on the board.

What's inside

Features and Specifications
System Board Layout
System Memory
CPU Support
Jumper Settings
Rear Panel I/O Ports
Connectors
Award BIOS Setup Utility
Troubleshooting Checklist

Specifications

Chipset	Intel 865PE
CPU Socket	Socket 478
Supported Processors	Pentium 4 (800 MHz/533 MHz FSB) and Celeron Northwood
Memory Slots	Four 84‑pin DDR DIMM sockets, dual‑channel
Maximum Memory	4 GB
AGP Slot	AGP 3.0, 4×/8×

Frequently asked questions

What voltage range should be used for the AC input?

Use the correct AC input voltage range to avoid damage to the system.

What type of memory modules are supported?

It supports non‑ECC DDR DIMMs of 128 MB, 256 MB, or 512 MB capacity, up to a total of 4 GB.

Which processors can be installed on this board?

The board accepts Intel Pentium 4 processors with Hyper‑Threading (800 MHz) and Intel Celeron Northwood processors.
