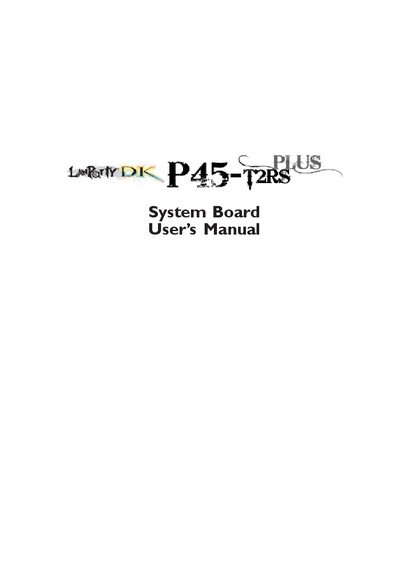

This document is the System Board User's Manual, which contains information that is protected by copyright. No part of it may be reproduced in any form or by any means or used to make any transformation/adaptation without the prior written permission from the copyright holders. This publication is provided for informational purposes only. The manufacturer makes no representations or warranties with respect to the contents or use of this manual and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. The user will assume the entire risk of the use or the results of the use of this document. Further, the manufacturer reserves the right to revise this publication and make changes to its contents at any time, without obligation to notify any person or entity of such revisions or changes.
This manual covers safety precautions, including electro‑static discharge (ESD) protection, proper handling, and warranty information for the system board. It also lists the items supplied with the motherboard package and the required components for a new system build.
Detailed specifications are provided for the processor socket, chipset, memory, expansion slots, audio, LAN, and storage features, along with BIOS setup guidance and RAID configuration options.
| CPU socket | LGA 775 |
|---|---|
| Supported CPUs | Intel® Core™ Quad and Intel® Core™2 Duo |
| Chipset | Intel® P45 Express |
| Memory slots | Four 240‑pin DDR2 DIMM sockets |
| Supported memory speed | DDR2 667/800/1066 MHz |
| Maximum system memory | 8 GB |
| Expansion slots | 2 PCI Express (Gen 2) x16, 2 PCI |
| Audio codec | Realtek ALC885 HD audio CODEC |
| LAN controller | Marvell 88E8053 Gigabit Ethernet |
| SATA support | Up to 6 SATA devices, 3 Gb/s, RAID 0/1/5 |
It uses an LGA 775 socket compatible with Intel® Core™ Quad and Core™2 Duo processors.
